El precio original era: S/1.520,00.S/838,00El precio actual es: S/838,00.
CARACTERISTICAS Y DETALLES TECNICOS :
TABLERO METALICO MARCA: LEGRAND MODELO:
36917Product characteristics General characteristics
Metal door cabinets
▪ Supplied with plain plate
Vertical version
▪ External dimensions Height x Width x Depth : 400 x 300 x 200 mm
▪ Number of doors : 1
▪ Weight : 6.9 kg
Atlantic metal cabinets supplied with plain plate – IP
55/IP 66 – IK 10 – Type 4x – Type 12
▪ IP 66 according to standards IEC EN 60529 for 1-door
cabinets – IP 55 according to standards IEC EN 60529 for 2-
door cabinets
▪ IK 10 according to standards IEC EN 62262
▪ LCIE 17 07 90 10A
▪ Type 4x, 1 door, Type 12, 2 doors – cULus, Bureau Veritas
▪ EMC attenuation 20 dB (for an EMC attenuation from 40 to 50
dB at 1 GHz, please consult us)
▪ Excellent resistance to corrosion and chemical agents
▪ 80 μm thick textured polyester coating. Anti-corrosion
treatment for hinges and pins
▪ Reversible door – Fitted with lever
▪ Supplied with double bar lock – Self-centering positioning
system for the equipment
▪ Compatible with all Atlantic accessories Low cable entries
RAL 7035 – Optional depth adjustement for cabinets 400 mm
depth, with slide rails Cat.No 0 367 45
item: sig – TABLERO METALICO | TABLERO ATLANTIC PR | tablero PLACA | tablero placa -
El precio original era: S/1.391,00.S/872,00El precio actual es: S/872,00.
CARACTERISTICAS Y DETALLES TECNICOS :

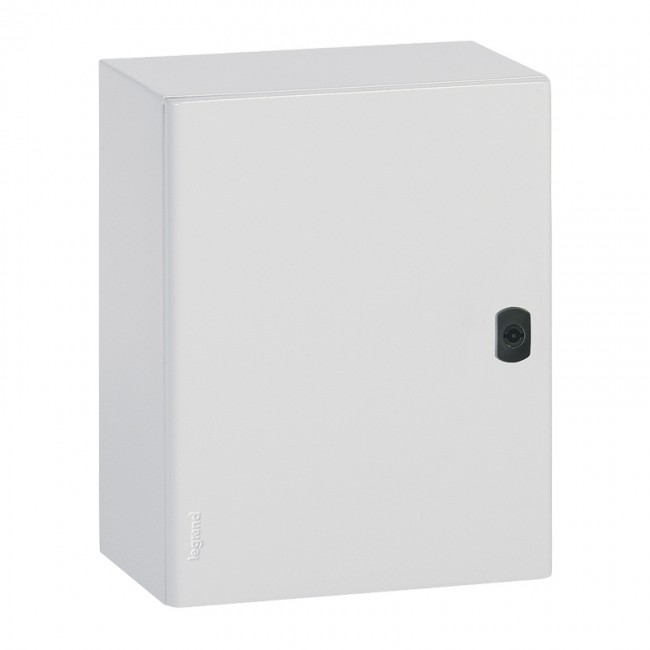

TABLERO METALICO MARCA: LEGRAND MODELO:
36918Product characteristics General characteristics
Metal door cabinets
▪ Supplied with plain plate
Vertical version
▪ External dimensions Height x Width x Depth : 500 x 400 x 200 mm
▪ Number of doors : 1
▪ Weight : 11.2 kg
Atlantic metal cabinets supplied with plain plate – IP
55/IP 66 – IK 10 – Type 4x – Type 12
▪ IP 66 according to standards IEC EN 60529 for 1-door
cabinets – IP 55 according to standards IEC EN 60529 for 2-
door cabinets
▪ IK 10 according to standards IEC EN 62262
▪ LCIE 17 07 90 10A
▪ Type 4x, 1 door, Type 12, 2 doors – cULus, Bureau Veritas
▪ EMC attenuation 20 dB (for an EMC attenuation from 40 to 50
dB at 1 GHz, please consult us)
▪ Excellent resistance to corrosion and chemical agents
▪ 80 μm thick textured polyester coating. Anti-corrosion
treatment for hinges and pins
▪ Reversible door – Fitted with lever
▪ Supplied with double bar lock – Self-centering positioning
system for the equipment
▪ Compatible with all Atlantic accessories Low cable entries
RAL 7035 – Optional depth adjustement for cabinets 400 mm
depth, with slide rails Cat.No 0 367 45item: sig – TABLERO METALICO | TABLERO ATLANTIC PR | tablero PLACA | OD
 |
