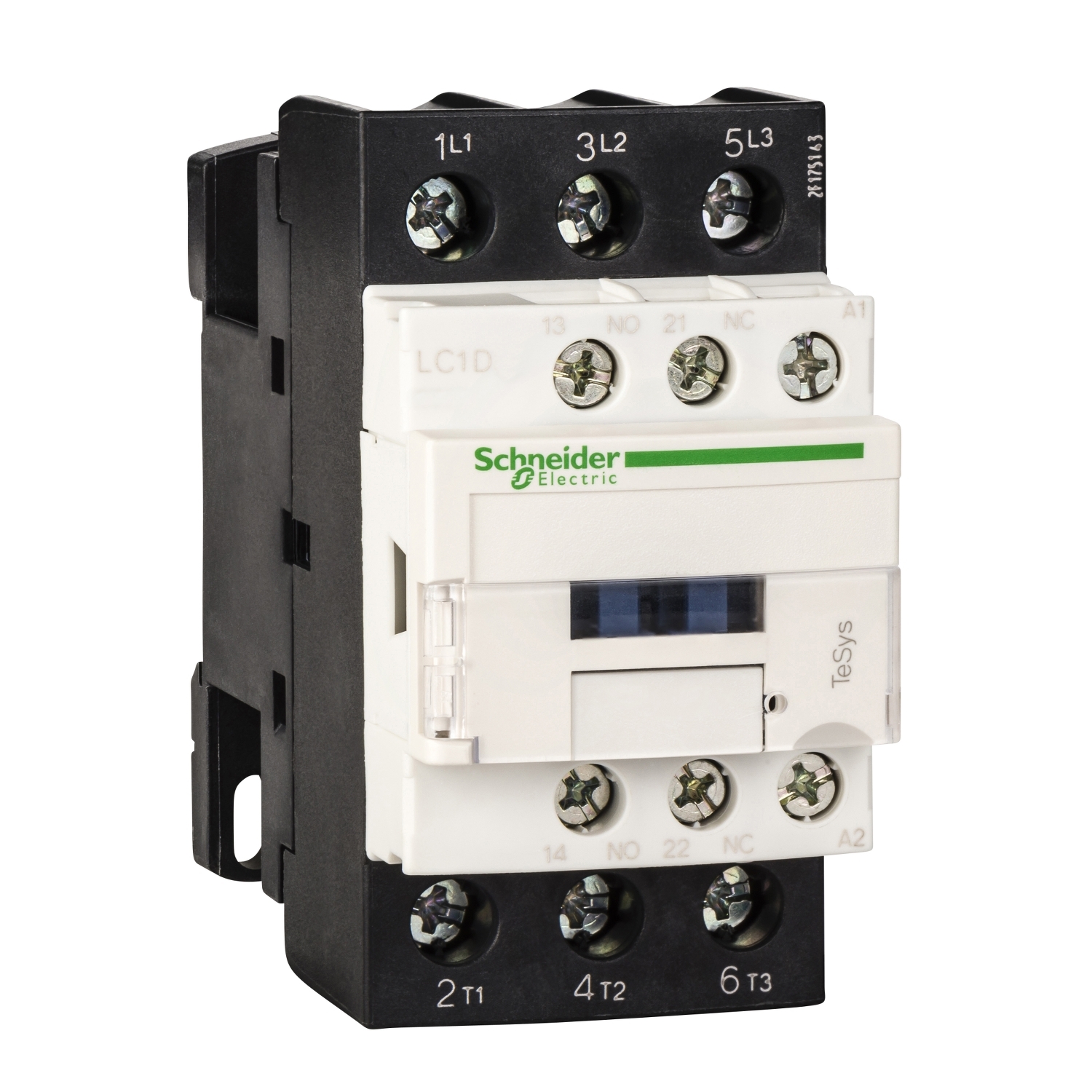

SCHNEIDER LC1D32Q7 STOCK DISPONIBLE
​


CONTACTOR – > MARCA: SCHNEIDER -> MODELO: LC1D32Q7 ; REALIZAMOS ENVIOS A TODO EL PERU SCHNEIDER ENTREGA INMEDIATA

Principal
Gama TeSys
Nombre del producto TeSys D
Tipo de producto o componente
Conector
Nombre corto del dispositivo
LC1D
Aplicación del contactor Carga resistiva
Control del motor
Categoría de empleo AC-3
AC-4
AC-1
Número de polos 3P
Power pole contact
composition
3 NA
[Ue] tensión asignada
de empleo
Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC [Ie] corriente asignada de empleo 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit Potencia del motor en kW 7.5 KW at 220...230 V AC 50/60 Hz (AC-3) 15 KW at 380...400 V AC 50/60 Hz (AC-3) 15 KW at 415...440 V AC 50/60 Hz (AC-3) 18.5 KW at 500 V AC 50/60 Hz (AC-3) 18.5 KW at 660...690 V AC 50/60 Hz (AC-3) 7.5 kW at 400 V AC 50/60 Hz (AC-4) Motor power HP (UL / CSA) 5 Hp at 230/240 V AC 50/60 Hz for 1 phase motors 10 Hp at 230/240 V AC 50/60 Hz for 3 phases motors 30 Hp at 575/600 V AC 50/60 Hz for 3 phases motors 2 Hp at 115 V AC 50/60 Hz for 1 phase motors 7.5 Hp at 200/208 V AC 50/60 Hz for 3 phases motors 20 hp at 460/480 V AC 50/60 Hz for 3 phases motors Tipo de circuito de control AC at 50/60 Hz [Uc] tensión del circuito de control 380 V AC 50/60 Hz Composición de los contactos auxiliares 1 NA + 1 NC [Uimp] Tensión asignada de resistencia a los choques 6 kV conforming to IEC 60947 Categoría de sobretensión III [Ith] corriente térmica convencional 10 A (at 60 °C) for signalling circuit 50 A (at 60 °C) for power circuit Irms poder de conexión nominal 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 550 A at 440 V for power circuit conforming to IEC 60947 Poder asignado de corte 550 A at 440 V for power circuit conforming to IEC 60947 [Icw] Corriente temporal admisible 60 A 40 °C - 10 min for power circuit 138 A 40 °C - 1 min for power circuit 260 A 40 °C - 10 s for power circuit 430 A 40 °C - 1 s for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit 3 Fusible asociado 10 A gG for signalling circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit 63 A gG at <= 690 V coordination type 2 for power circuit Impedancia media 2 mOhm - Ith 50 A 50 Hz for power circuit [Ui] tensión asignada de aislamiento Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified Power circuit: 690 V conforming to IEC 60947-4-1 Durabilidad eléctrica 1.65 Mcycles 32 A AC-3 at Ue <= 440 V 1.4 Mcycles 50 A AC-1 at Ue <= 440 V Potencia disipada por polo 2 W AC-3 5 W AC-1 Front cover Con Tipo de montaje Carril Placa Normas CSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 508 Certificaciones de producto BV RINA UL CCC LROS (Lloyds Register of Shipping) DNV GOST GL CSA Conexiones - terminales Control circuit: screw clamp terminals 2 cable(s) 1… 2.5 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1… 4 mm²flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1… 4 mm²flexible without cable end Control circuit: screw clamp terminals 1 cable(s) 1… 4 mm²flexible with cable end Control circuit: screw clamp terminals 1 cable(s) 1… 4 mm²solid without cable end Control circuit: screw clamp terminals 2 cable(s) 1… 4 mm²solid without cable end Power circuit: screw clamp terminals 1 cable(s) 2.5…10 mm²flexible without cable end Power circuit: screw clamp terminals 2 cable(s) 2.5…10 mm²flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1… 10 mm²flexible with cable end Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm²solid without cable end Power circuit: screw clamp terminals 2 cable(s) 2.5… 10 mm²solid without cable end Par de apriete Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2 Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm Power circuit: 2.5 N.m - on screw clamp terminals - with screwdriver Philips No 2 Duración de maniobra 4...19 ms opening 12...22 ms closing Nivel de fiabilidad de seguridad B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 Endurancia mecánica 15 Mciclos Rango de operación 3600 cyc/h 60 °C

Complementario
Característica de la bobina Sin filtro antiparasitario de serie
Límites de tensión del circuito de control 0.3…0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8…1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85…1.1 Uc (-40…60 °C):operational AC 60 Hz
1…1.1 Uc (60…70 °C):operational AC 50/60 Hz
Consumo a la llamada en VA 70 VA 60 Hz cos phi 0.75 (at 20 °C)
70 VA 50 Hz cos phi 0.75 (at 20 °C)
Consumo de mantenimiento en VA 7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
7 VA 50 Hz cos phi 0.3 (at 20 °C)
Disipación de calor 2…3 W at 50/60 Hz
Tipo de contactos auxiliares Type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
Type mirror contact 1 NC conforming to IEC 60947-4-1
Frecuencia del circuito de señalización 25…400 Hz
Corriente mínima de conmutación 5 mA for signalling circuit
Tensión mínima de conmutación 17 V for signalling circuit
Tiempo de no superposición 1.5 Ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact
Resistencia de aislamiento > 10 MOhm for signalling circuit
